Quick Details

  • Condition: New
  • Type: Vulcanizer
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: Beltwin
  • Model Number: DSLQ-S
  • Voltage: 380V. 660V. 480V. 440V. 415V. 400V or 220V
  • Power(W): 4~21.8KW
  • Dimension(L*W*H): 1440x830x750
  • Weight: 625kgs
  • Certification: ISO9001
  • Warranty: one year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Pressure System: Air or Water
  • Working Pressure: 100PSI 200PSI
  • Belt width: 500~3000mm
  • Cooling system: water cooling
  • Heating platen degree: 22 degree bias angle or 17 degree or rectangle
  • Vulcanizing temperature: 145 degree

Packaging & Delivery

Packaging Details Wooden box
Delivery Time 20 working days
Company Information

      1.Convertor Belt Repairs Beltwin

pressure bag Conveyor Belt Sectional Vulcanizer

2.Conveyor Belt Splicing on Steel Cord Belts Beltwin 100psi200psi effective belt splicing vulcanizer for jointing fabric, steelcord

3.Conveyor Belt Splicing,Fabric Belts,PVC B

eltwin electric heat vulcanizing belt press machine

4.Transmission Belts, Tangential Belt, Spindle Tape Splicing

Packaging & Shipping



Packaging Details:

Wooden box

Delivery Detail:

20 working days

 svp pro nilos fonmar

1. Technical Parameters Beltwin electric heat rubber press vulcanizing equipment for rubber conveyor belt

  • Vulcanizing temperature:

                              145 (adjustable 0~200)

  • Temperature-rising time (from normal temp to vulcanizing temp):

                                        ≤50 mins(around 25~30 mins normally)

  • Improved cooling system: using pressure pump for cooling:

                            only 5mins (cooling from 145 to 75 degrees)



2.When order or inquiry, pls offer below informaiton:



(FRENCH:Quand l'ordre ou de l'enquête, pls offrir informations ci-dessous)
(SPANISH:Cuando pedido o consulta, pls ofrece a continuación información)

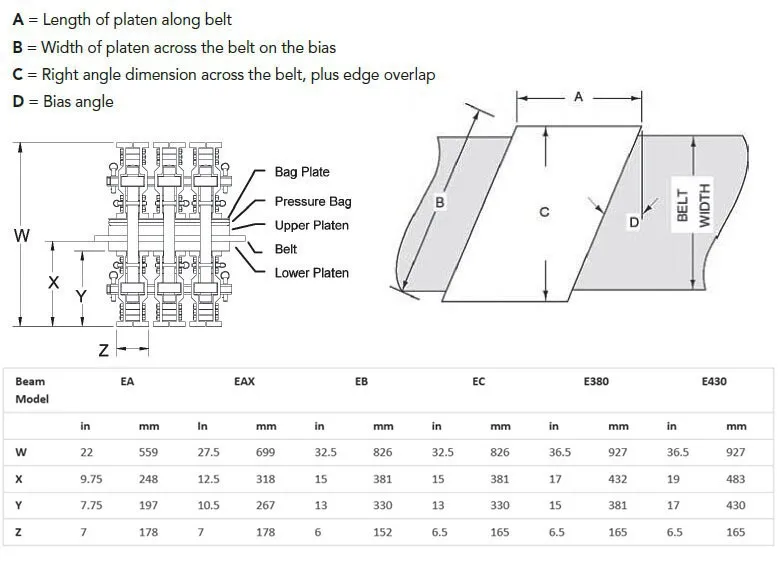

1.Heating platen length(A=?)
2.Belt max width(B=?)
3.Working pressure100PSI / 200PSI
4.Working voltage 380V/ 660V / 480V / 440V / 415V / 400V or 20V
What kind of pressnormal type or 2pcs type



Any other special requirement pls contact us.

          More informaiton pls freely to visit our website: www.beltwin.com



Product Description

    Belt width: from 650mm to 3000mm 200PSI Almex alike Uniform Pressure Bag for Conveyor Belt Press

    Degree of the heating platen: 22 °/17 °/ 20 ° (rectangle and other degree is optional)

    Waterbag/ air pressure Press for 100PSI200PSI etc.

    Surface pressure for textile and steel cord belts, Up to 1.8Mpa.

  • 100 p.s.i. (7 kg/cm sq.) units suitable for splicing fabric ply belting
  • 200 p.s.i. (14 kg/cm sq.) units suitable for splicing steel cord conveyor belting
  • Customization/OEM:Different heating platen size and combination

3. Specification



    1.  100 p.s.i. (7 kg/cm sq.) units suitable for splicing fabric ply belting.





    2.  200 p.s.i. (14 kg/cm sq.) units suitable for splicing steelcord conveyor belting.



 4. Main componets



    1. Aluminum Frame (Spanner Bars):

  High quality aluminum, designed for any belt width or operating pressure (from EA up to E430)




    2. High tensile steel bolt and nut assemblies, recessed in the bar.

    3. Lightweight aluminum platens within new rapid cooling system


    4.New electric connect system (Old flat plug & socket design: plug pins broken easily)



        5. Automaitc control panel:





5. CE






6.Sufficient Machines are Distrubuted Throughout the World

7.More Products as Following
